TFT,LCD/LCM,Touch Screen,OLED,EMS,JASONIC
LCD/LCM

Product

LCD/LCM

市 场 价：￥0

优 惠 价：￥1

库  存：999

选择商品：
1

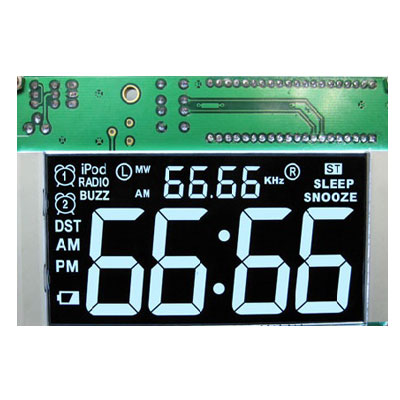

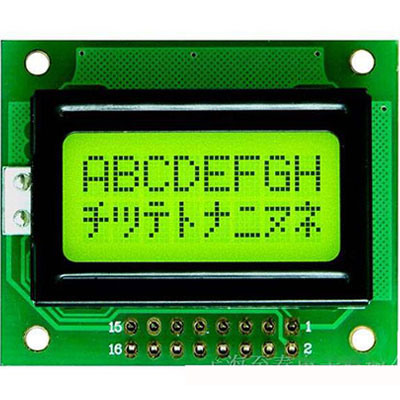

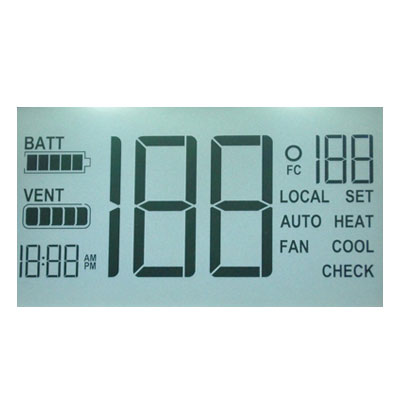

LCD：
Panel type: TN, HTN, STN, FSTN, DFSTN, VBN, VA, WIDE VA, FSC and etc.
Display type has positive and negative, Polarizer type include Reflective, Transflective and Transmissive.
LCD can display characters, numbers, graphic and something else in different language.
Standard module, Semi-custom and full custom are optional.
LCD module plus include driving PCB board, RTP/CTP assembly, special back light, with cable or housing etc.
Be widely used in consumer electronics, automotive, home appliance, medical instrument, industrial equipment, communication and sport devices.

- +
点击收藏(人气0)

商品详细

  • Part No. Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Technology Touch Panel Download
    GBD006A1 Digital 29.0x19.7 16.59x8.8 6 O'clock SPI -0~50 -10~ 60 HT1621 COB N
    GOD004M5 Digital 42.0x37.0 37.0x32.0 6 O'clock FPC -10~60 -20~70 N/A LCD+FPC N
    GPS0229A0 Digital 82.8x27.0 80.0x20.0 12 O'clock PIN -20~80 -30~ 85 N/A LCD+PIN N
    JF1404A6
    		 Digital 41.0x16.0 39.0x12.0 12 O'clock PIN 0~50 -10~60 N/A LCD+PIN N
    JOD003B4 Digital 221.5x215.0 202.5x202.0

    6 O'clock

    		PIN -20~70 -30~80 N/A LCD+BL N
    JOD207A5 Digital 29.0x24.0 23.1x16.10 6 O'clock Heat Seal -20~70 -30~80 N/A LCD+H/S N
  • Part No. Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Technology Touch Panel Download
    JTC0802AV01 08x02 58.0x32.0 27.81x11.5 6 O'clock parallel -20~70 -30~ 80 KS0066 or equivalent COB N
    JTC1202AV00 12x02 55.7x32.0 37.85x11.7 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC1601AV00 16x01 80.0x36.0 59.62x6.56 6 O'clock parallel -20~70 -30~ 80 KS0066 or equivalent COB N
    JGC1602B3CYV00
    		 16x02 69.5x27.4 56.2x11.5 6 O'clock parallel -20~70 -30~80 ST7032i COG N
    JGC1602C1GNV00 16x02 65.0x27.7 54.7x10.8 6 O'clock parallel -20~70 -30~80 PCF2119X COG N
    JTC1602AV00 16x02 84.0x44.0 56.2x11.5 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC1602CV00 16x02 85.0x36.0 56.21x11.5 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC1602LV00 16x02 122.0x44.0 94.84x20.0 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC1604AV00 16x04 87.0x60.0 56.2x20.8 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC1604BV00 16x04 70.6x60.0 56.2x20.8 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC2001AV00 20x01 180.0x40.0 142.8x14.98 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC2002AV00 20x02 116.0x37.0 73.5x11.5 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC2004ABV00 20x04 98.0x60.0 70.04x20.8 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC4002AV00 40x02 182.0x33.5 147.5x11.5 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
    JTC4004AV00 40x04 190.0x54.0 140.45x23.16 6 O'clock parallel -20~70 -30~80 KS0066 or equivalent COB N
  • Part No. Resolution Outline(mm) AA size(mm) View angle
    (U/D/L/R)         		Interface Operating
    Temp
    (℃)         		Storage
    Temp
    (℃)         		Controller Technology Touch Panel Download
    JTG12232ACV00 122x32 84.0x44.0 53.64x15.64 6 O'clock parallel -20~70 -30~ 80 SBN1661G or equivalent COB N
    JTG14432BV00 144x32 80.0x36.00 60.44x13.4 6 O'clock parallel -20~70 -30~80 ST7920 COB N
    JTG12864AV00 128x64 93.0x70.0 66.52x33.24 6 O'clock parallel -20~70 -30~ 80 SBN0064,SBN6400 COB N
    JTG12864CV00
    		 128x64 78.0x70.0 56.3x38.38 6 O'clock parallel -20~70 -30~80 SBN0064,SBN6400 COB N
    JTG12864MV00 128x64 95.5x50.2 66.52x33.24 6 O'clock parallel -20~70 -30~80 SBN0064,SBN6400 COB N
    JGG12864E2CFV00 128x64 35.0x27.8 28.785x15.025 6 O'clock SPI -20~70 -30~80 SSD1815BZ COG N
    JGG12864E7CFV00 128x64 76.10x50.60 66.52x33.24 6 O'clock parallel -20~70 -30~80 ST7565P COG N
    JGG19264FV01 192x64 104.4x45.0 78.67x26.19 6 O'clock SPI -30~80 -40~90 UC2618C COG N
    JTG19264CV00 192x64 100x60 78.67x26.19 6 O'clock parallel -20~70 -30~80 KS0107,KS0108 COB N
    JGY12864K8SGV06 128x64 77.4x51.0 66.52x33.24 6 O'clock parallel -20~70 -30~80 ST7565P COG N
    JTG24064AV00 240x64 180.0x54.0 127.16x33.88 6 O'clock parallel -20~70 -30~80 RA6963 COB N
    JTG128128AV00 128x128 100.0x85.0 55.01x55.01 6 O'clock parallel -20~70 -30~80 RA6963 COB N
    JTG160160AV00 160x160 89.2x85.0 60.76x60.76 6 O'clock parallel -20~70 -30~80 TBD COB N
    JTG240128AV00 240x128 170.0x93.4 119.97x63.97 6 O'clock parallel -20~70 -30~80 RA6963 COB N
    JTG320240A3FHV00 320x240 130.0x99.90 115.17x86.37 6 O'clock parallel -20~70 -30~80 NT7701H,NT7702H TAB N
    JTG320240ACIGV01 320x240 88.30x69.10 76.785x57.585 9 O'clock Serial -20~70 -30~80 NT7701,NT7709 COG N
    JTG320240GV00 320x240 160.0x109.0 155.18x86.38 6 O'clock parallel -20~70 -30~80 RA8803 COB N
